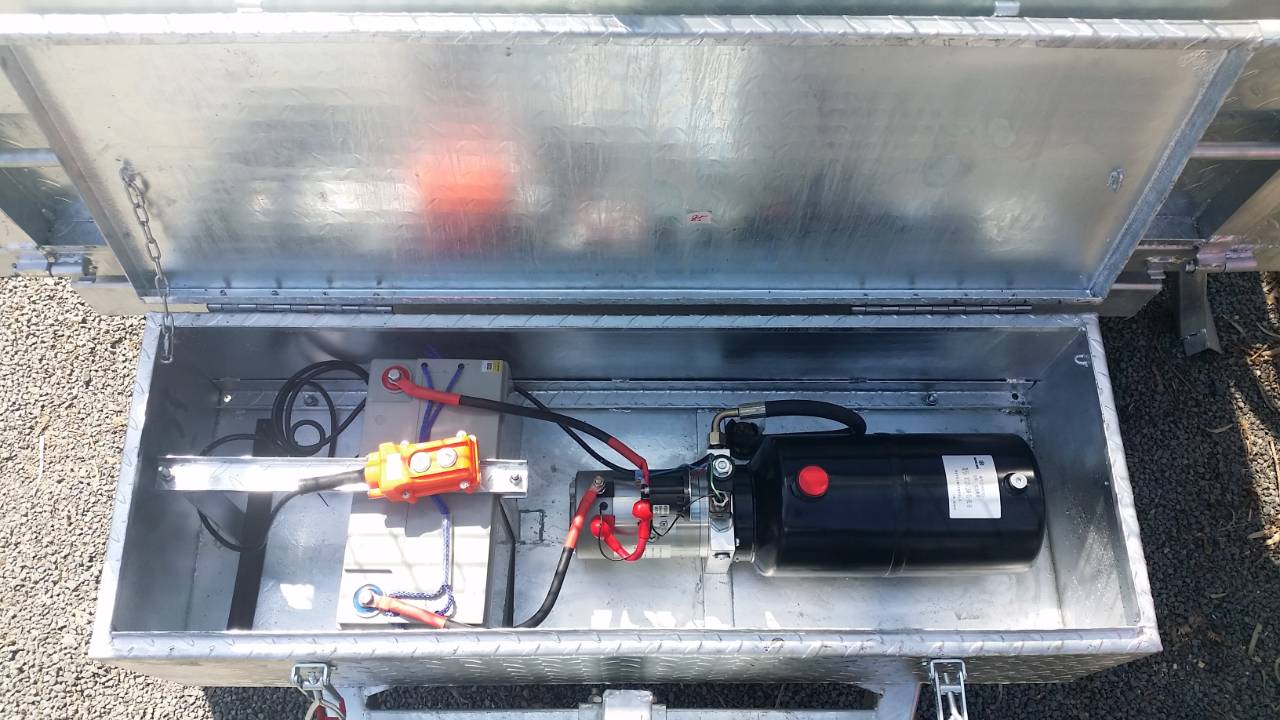

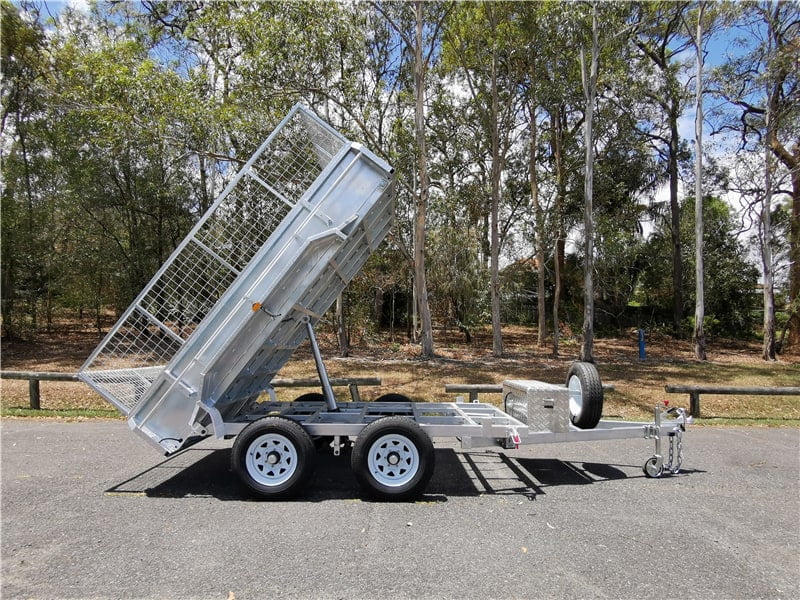

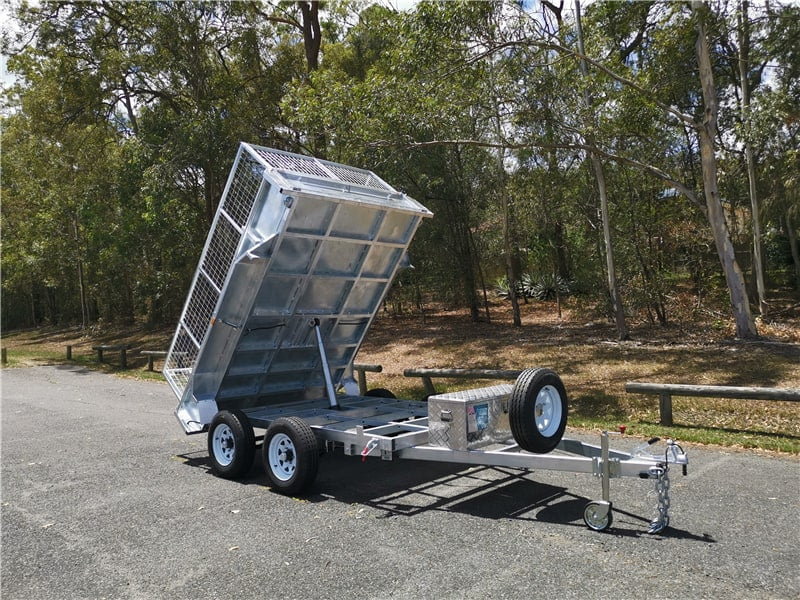

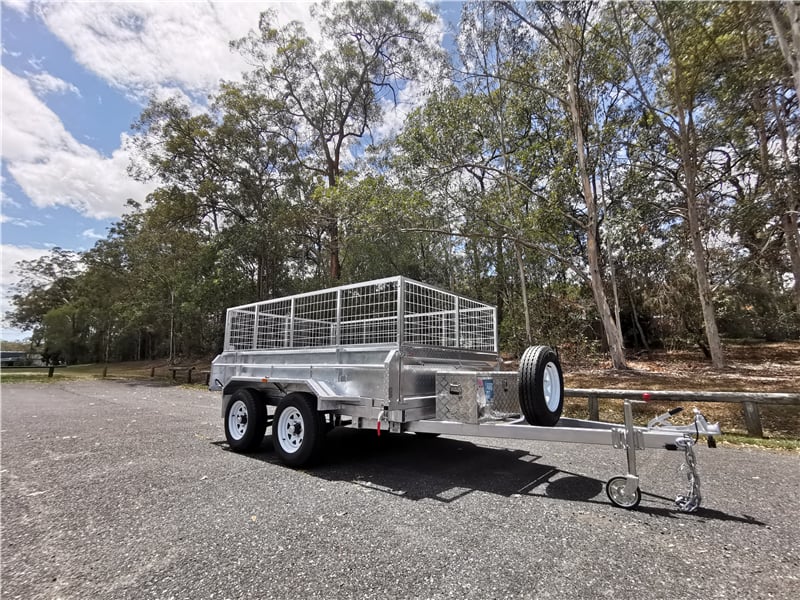

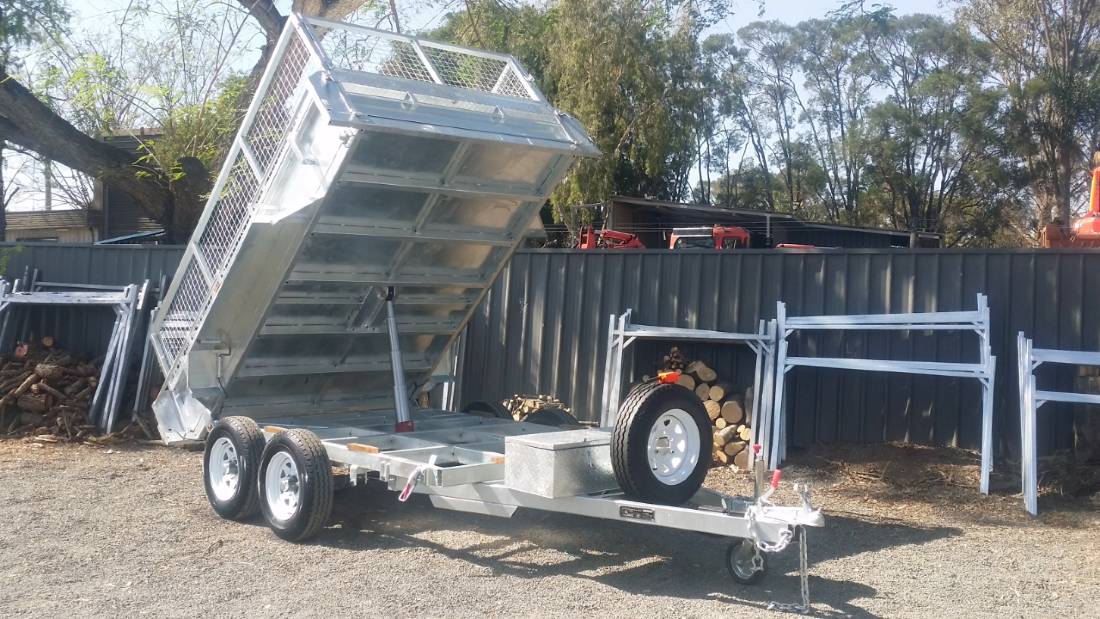

Multi stage Hydraulic Ram offers a Maximum of nearly 85 Degree Tipping angle. Provides smooths tilting and enough tipping angle to make any unloading job a breeze. Includes 400mm sides and 600mm galvanized Cage. 100 AMP Deep Cycle Battery and 2 Heavy Duty slide out Ramps.
$9,900.00
- DECK SIZE: 3000 x 1525mm (10 x 5 ft)
- Dual Structural chassis supper strong and flexible upper 70mm & lower 100mm
- Under body extra bracing for trade use long lasting construction

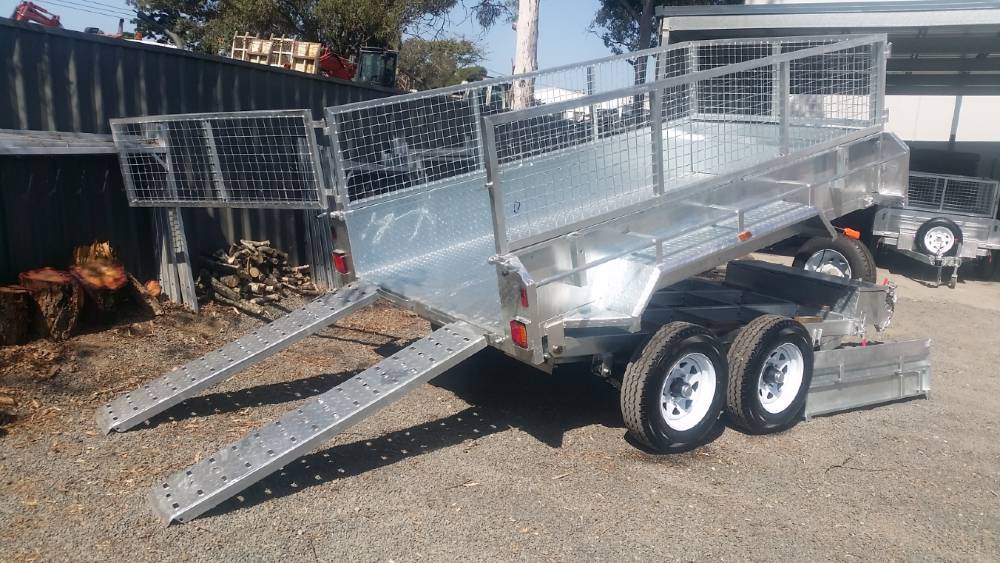

- 2 Heavy duty Slide out Ramps
- Rust Free. ATM 3500KG
- Fully Welded Heavy Duty Body and Chassis. Rust Free. Great for Tradesman all in one trailer now
- Spare Tyre post option
- Fling Open Tail Gate, able to leave tailgate on when using ramps and tipping
- Heavy Duty Lock down latches
- Full Length Tie Down Rails
- Heavy Duty Dexter Bearings for trade use
- Each Axle rated at 2000kg each
- Dexter heavy duty Bearings
- Comes with 12″ Electric Brakes
- Quality Breakaway Unit fitted
- LED lights with Marker Lights on the sides. ADRs Complied.
- 50mm 3.5t Quick Release Coupling
- 1900mm Long Draw Bar. With 100mm x 50mm x 5mm with Extra under bracing reinforced draw-bar.
- 3500KG Tow hitch brake/handbrake

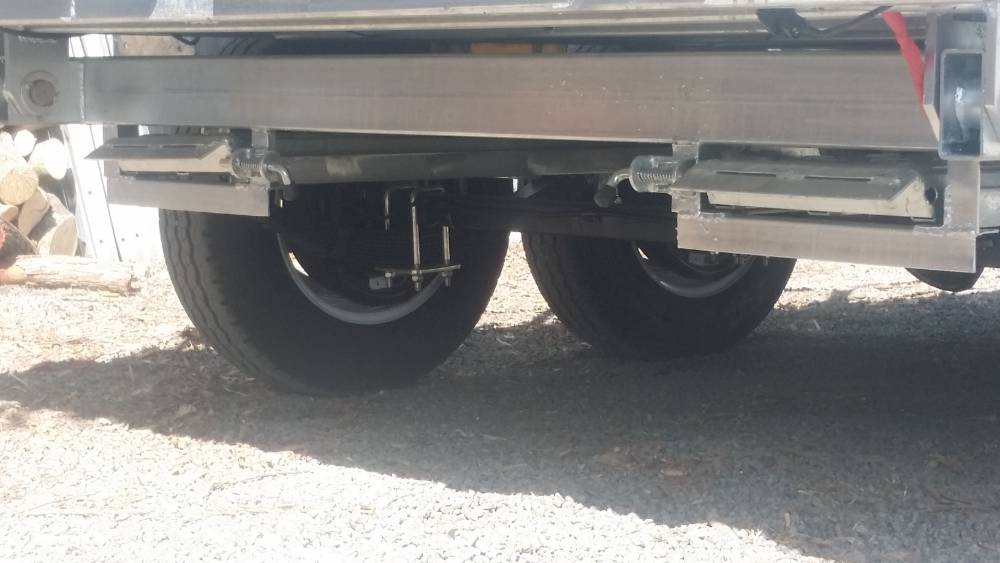

- 50mm Solid Axles. Rocker Roller Suspension with Heavy Duty 9 Leaf Springs
- 6 stud 15 inch Landcruiser
- Brand new 195 R15c White Sunraysia Light Truck Tyres
- Comes with wind Up 10″ Heavy Duty Jockey Wheel

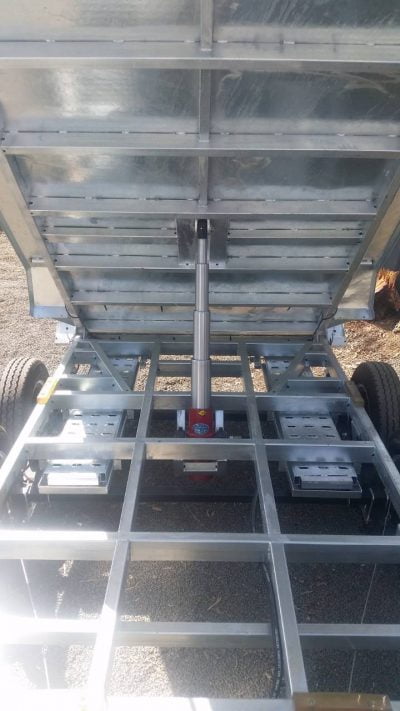

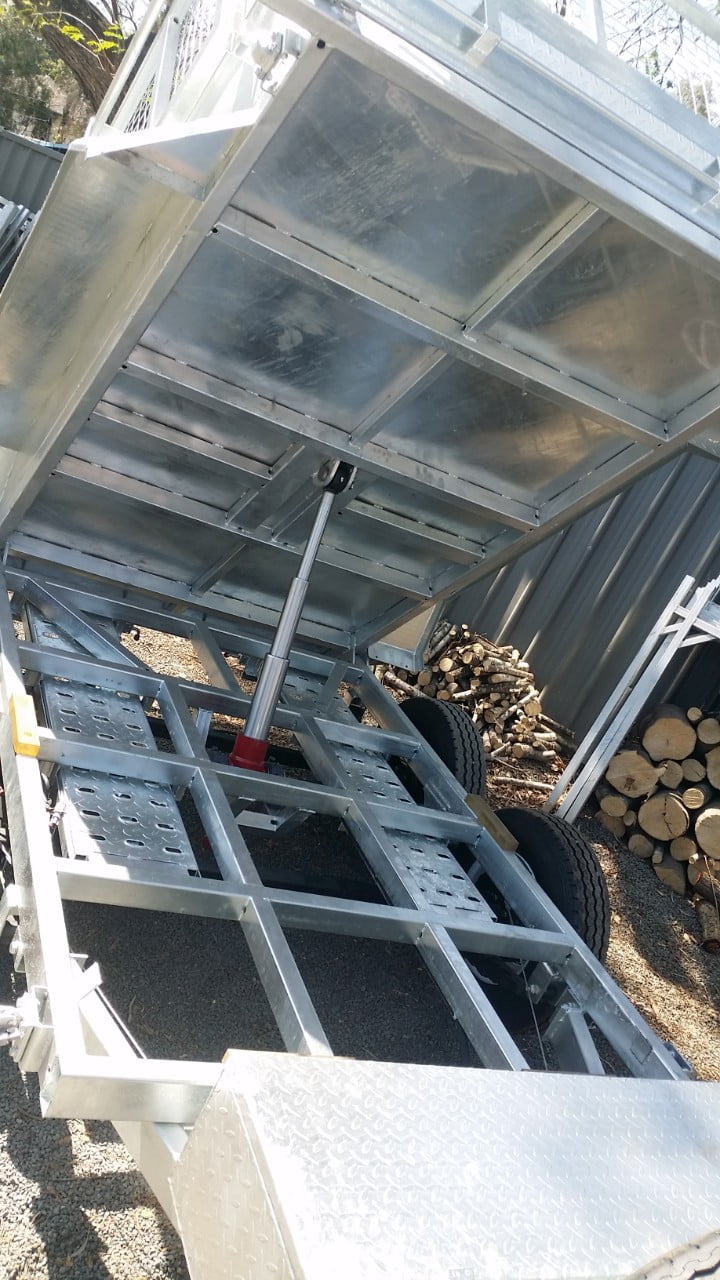

- MULTI Stages Hydraulic ram
ADD ON
SPARE TYRE – 14″
125.00
QLD REGO 6-MTHS
195.00
QLD REGO 12-MTHS
295.00
Specifications

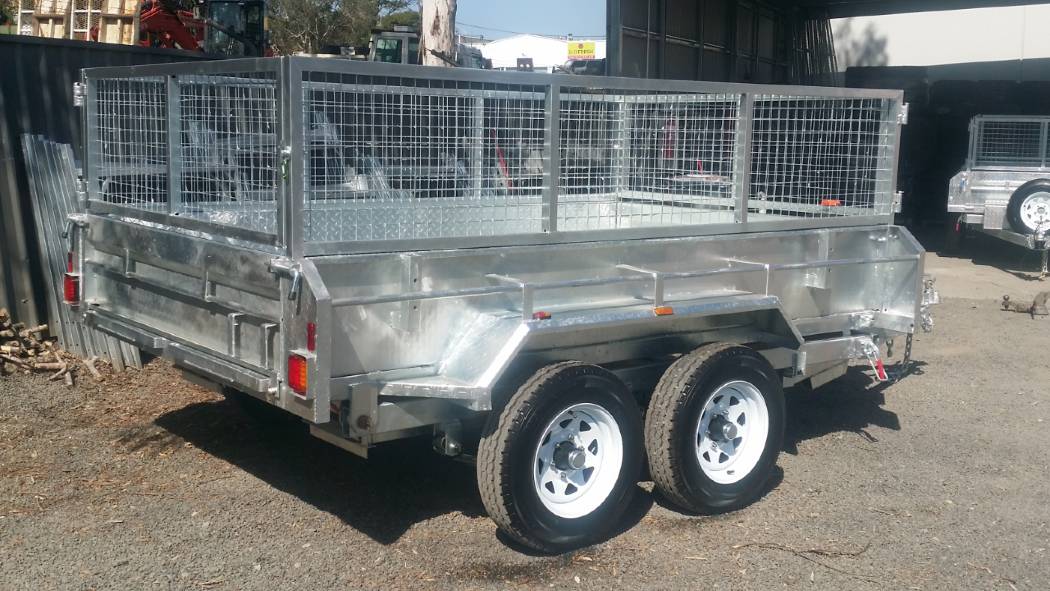

| Model: | 10 x 5 ft Tandem Hydraulic Tipper Box Trailer |
| ATM: | 3500KG |
| Chassis: | 100mm x 50mm x 5mm |
| Trailer Deck Size: | 3000mm x 1525mm (x 400mm high sides) |
| Drawbar: | 1900mm, 100mm x 50mm x 6mm |
| Body: | Checker plate 400mm High sides |
| Finish: | Hot Dipped Galvanized |
| Side: | 400mm Removable front and Rear Tail Gates |
| Flooring: | 2.5mm Checkerplate |
| Cage: | 600mm (900mm Optional) |
| Jockey Wheel: | 10″ Heavy Duty Swing Up |
| Wheel: | New 195R15C 6 STUD Wheels and Tyres |
| Spare Wheel and Holder: | Optional |
| Brake: | 12″ Electric Drum Brake x 4 |
| Axle: | Dual Axle, 50mm Solid Axles, HD Dexter Bearings |
| Coupling: | 50mm Australia Standard |
| Lights: | LED |
| Lights Plug: | Flat 7 Pin Plug |
| Spring: | 9 Leaf Heavy Duty Rocker Roller Spring |
| Safety Chain: | 2 x 12mm |
| Ladder Racks: | Optional |
| Warranty: | 12 months Limited Warranty |
